High-Strength Non-Shrink Grouting Material

Grouting

This product is a dry-mix material industrially and precisely formulated with high-strength cement as the binder, matched with well-graded selected aggregates, multiple high-performance admixtures and mineral additives. It features self-leveling performance, high compressive strength, slight expansion, zero shrinkage, corrosion resistance and easy construction. Simply mix with water at the specified ratio before use. It is widely applied for secondary grouting of equipment foundations, anchor bolts, steel column bases, as well as reinforcement and repair of concrete structures.

Simply mix with water at the specified ratio before use. Easy construction with excellent performance for demanding applications.

Get a Quote

Application Scope

Equipment Foundation Grouting: Fixation and secondary grouting for large mechanical & electrical equipment, power machinery, compressors, pump units, etc.
Anchor Bolt Anchoring: Embedding and anchoring of anchor bolts for steel structure workshops, bridges, power stations and other facilities.
Steel Column Base Grouting: Pressure grouting beneath base plates of steel buildings, towers and frameworks.
Concrete Structure Reinforcement & Repair: Remediation and reinforcement for honeycombing, voids and cracks in concrete beams, slabs, columns and foundations.

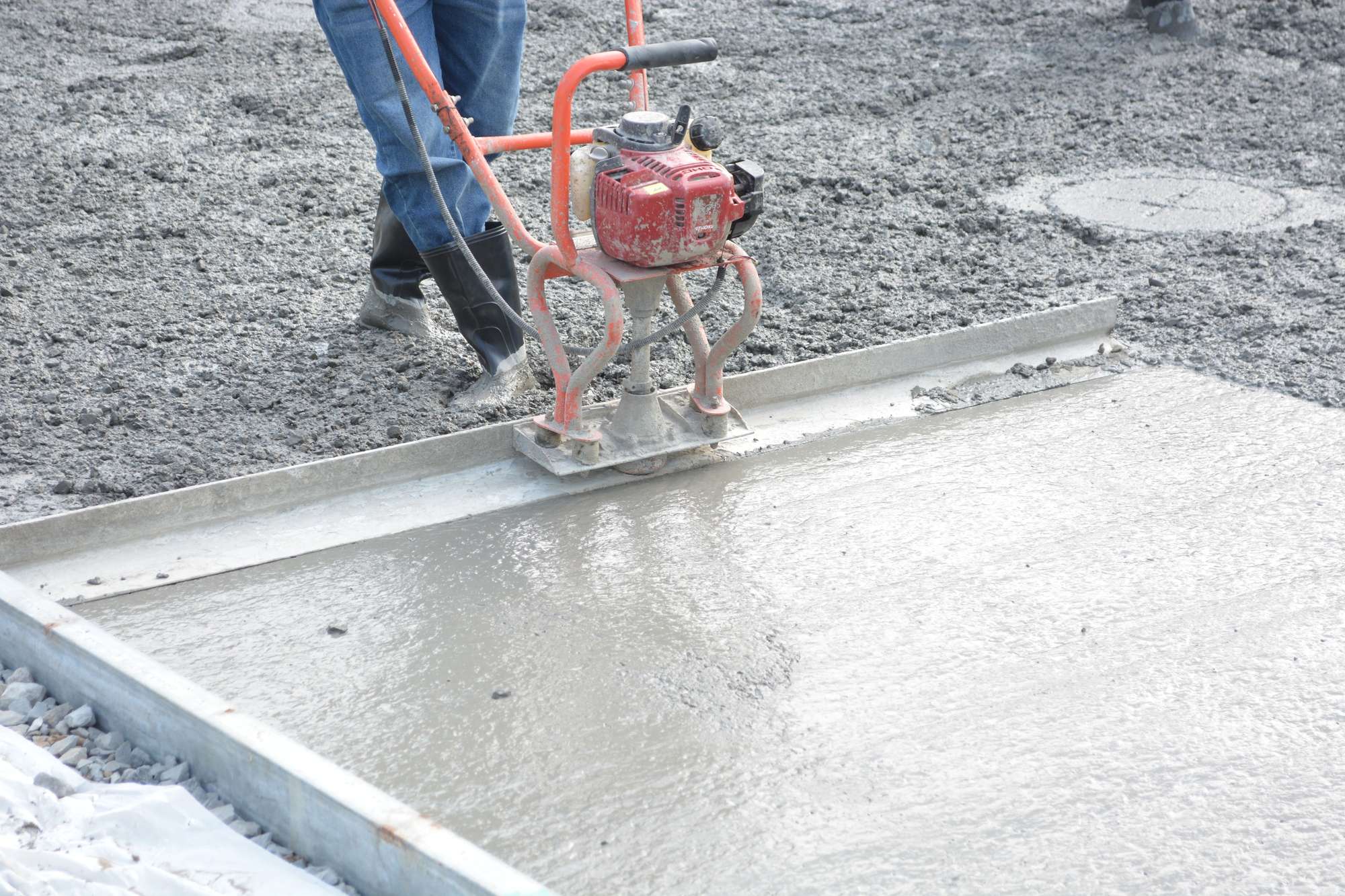

Rapid Repair of Roads & Bridges: Suitable for pavement and bridge deck repair projects requiring quick traffic reopening.

Technical Formula

Raw Material	Dosage
110 MPa Grout (UHPC Wind Power Mortar)	-
Grade 52.5 Cement	450 kg
Silica Fume	70 kg
Expansive Agent	25 kg
Microspheres	80 kg
10–20 Mesh Quartz Sand	200 kg
20–40 Mesh Quartz Sand	balance
Superplasticizer 1021	10 kg
Defoamer	1 kg
Shaping Expansive Agent	0.3 kg
Water	90 kg

Non-Shrink Grout
